Biocompatible column selction valve

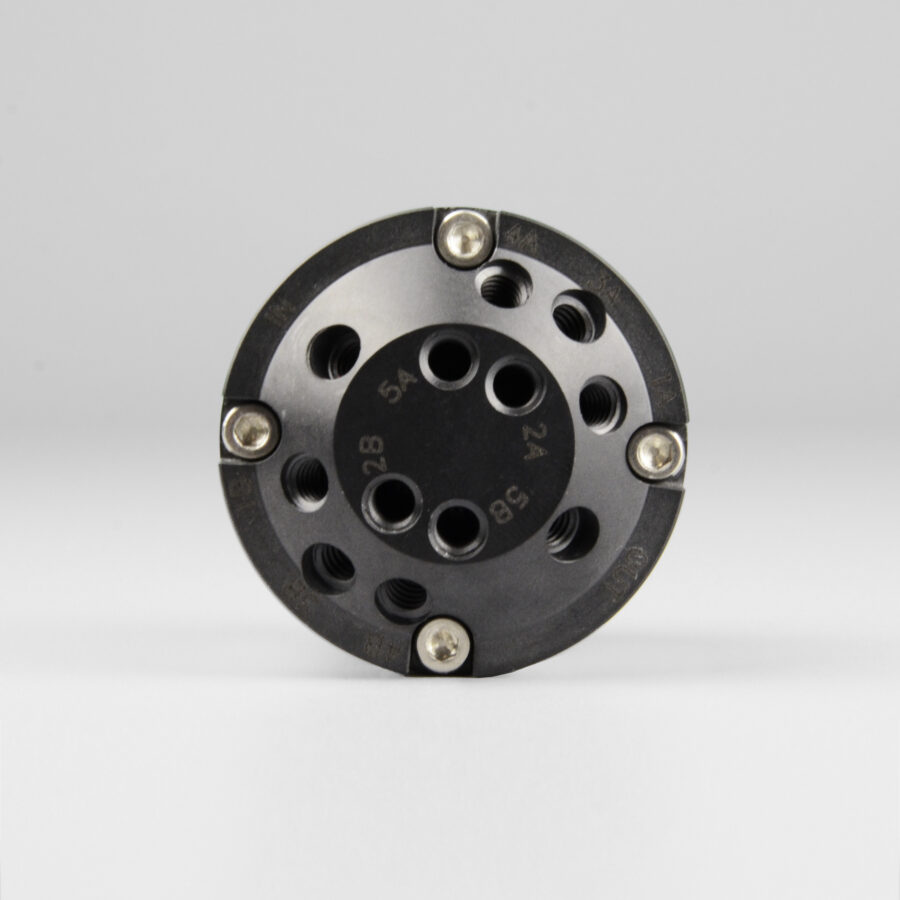

Column Selection Valve VICI for 5 columns, 1 bypass, reverse flow, 12 ports, 1/16“, 50 bar
Switch automatically between 5 columns and one bypass using the column selection valve. The bypass option gives you the possibility to rinse your system with higher flowrates without damaging your columns. Furthermore, it is possible to reverse the flow. This option has certain advantages. In affinity chromatography you can elute your sample in reversed flow and thereby increase the concentration while decreasing the sample volume. Another big advantage is the reversed flow column cleaning option. By this, you elute contamination the shortest way and minimize damage to the column. Wetted parts of the valve are PAEK for the stator and CTFE for the rotor. The maximal flowrate for the valve is 50 ml/min.
The valve can not be operated via an Assistant ASM 2.2L but always requires the standalone AZURA valve Drive VU 4.1
Valve Details
| Function | Bypass, Column selection, Reverse flow |
|---|---|
| Capillary connection | 1/16″ |
| Bore size [mm] | 0.4 mm |
| Thread | 10-32 UNF |
| Max. pressure [bar] | 50 bar |
| Max. pressure [MPa] | 5 MPa |
| Max. pressure [psi] | 725 psi |
| Port number | 12 |
| Positions | Multiposition |
| Stator material | PAEK |
| Rotor material | PTFE |
| Material | Biocompatible |
| Valve Drive | not included |
| Operated | electrical by VU 4.1 |
General
| Dimensions | Valve diameter: 44.2 mm |
|---|---|
| Weight | 0.2 kg |
| Ambient conditions | Temperature range: 4–40 °C; 39.2–104 °F; below 90 % humidity (non condensing) |
