Smart valve drive with RFID-technology
Valve drive for valves V 4.1

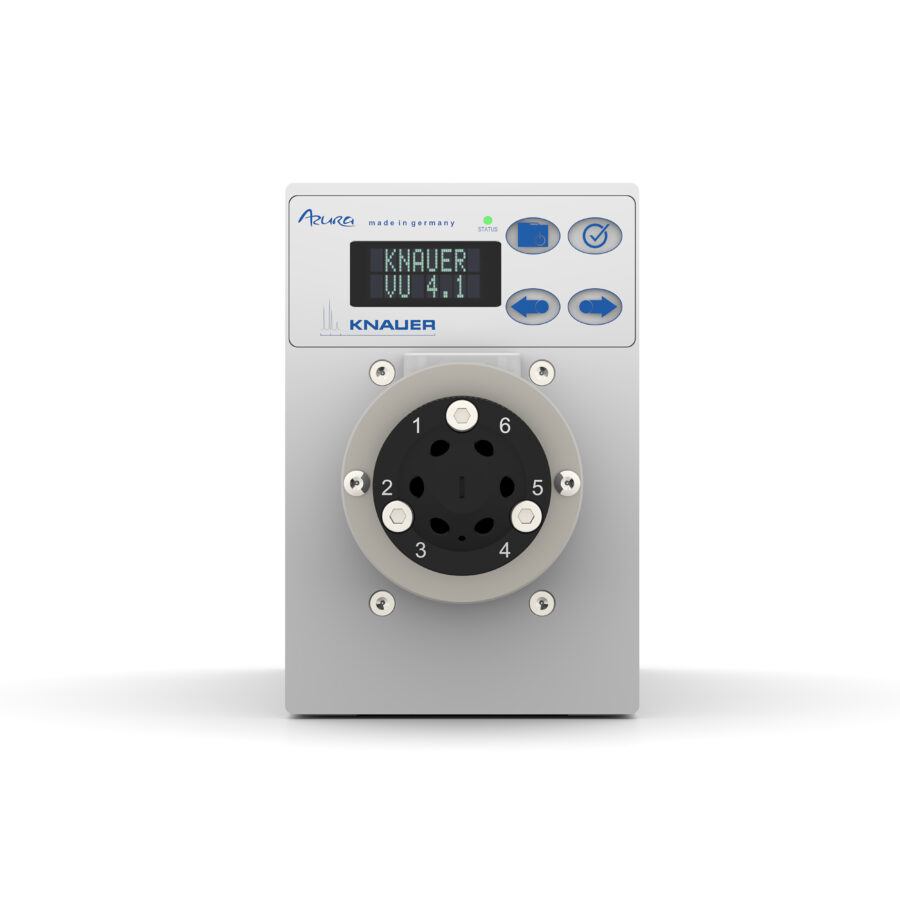

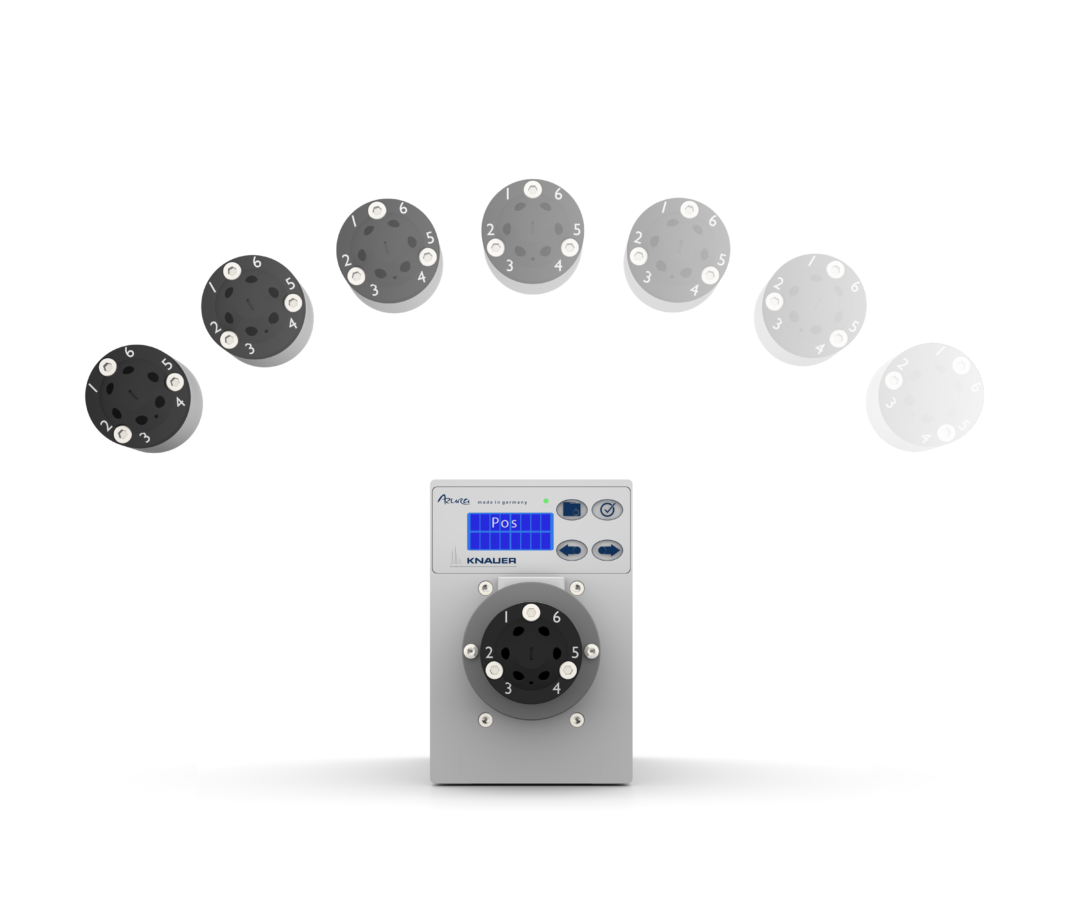

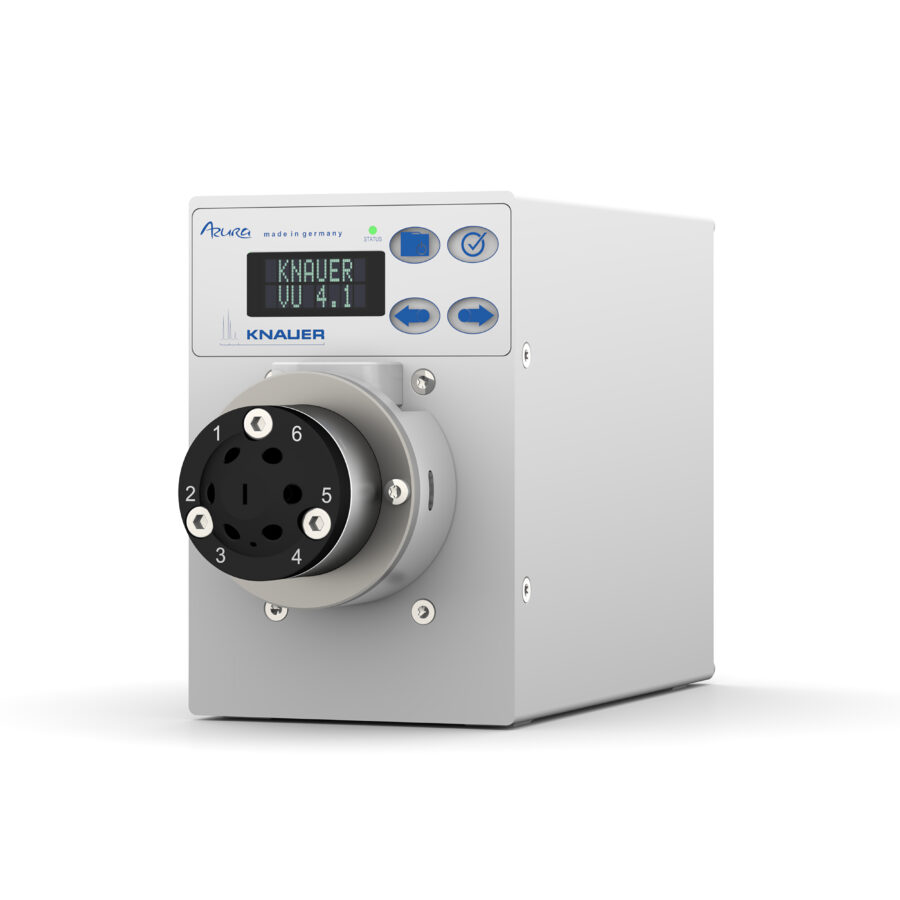

The valve drive AZURA® Valve Unifier VU 4.1 enables automatic valve switching. Due to its low switching time, the flow path is blocked only for a very short time, and pressure peaks are reduced to a minimum. Valves are identified via RFID technology, which guarantees an easy valve exchange of KNAUER valves. An additional feature is the easy monitoring of GLP data, which simplifies maintenance such as the exchange of a rotor seal. The display enables user-friendly standalone operation. In addition, the valve drive can be operated with software as well with an optional touch display (Mobile Control), via LAN or analog input/output, by which it can be integrated into nearly every LC system.
Communication
| Interfaces | LAN, display, terminal strip |
|---|---|
| Control | Display, software, event control |
| Inputs | Binary control; Home, Backward/Inject, Forward/Load, Start IN |
| Outputs | Trigger out, Event |
General
| Power supply | External DC 24V, 65 W |
|---|---|
| Dimensions | 80 x 123 x 192 mm (W x H x D) |
| Weight | 1.9 kg |
| Ambient conditions | Temperature range: 4–40 °C; 39.2–104 °F below 90 % humidity (non condensing) |
