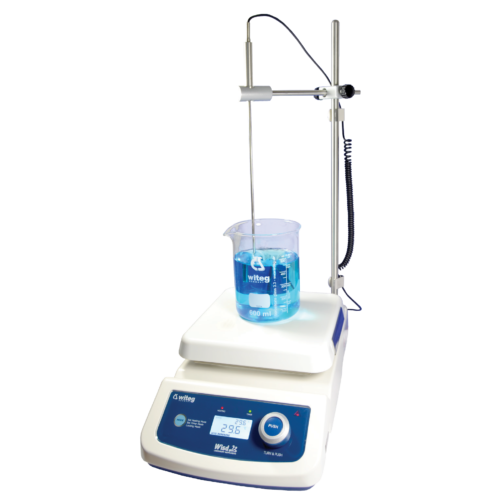

Witeg – Digital Magnetic Stirrer with Hotplate (MSH-500D)

Ideal for:

  • mixing of chemical, laboratory and pharmaceutical materials
  • heat-sensitive procedures in microbiology and biochemistry
  • sample drying and general lab heating applications where high temperature is needed

Safety mechanism:

  • hot top indicator lamp
  • high quality insulation (BTU)
  • timer 99h 59min with timer-end signal
  • error status
  • locking mode
  • operation LEDs


Controller:

  • Jog-Dial controller with touch-button for precise temperature control

Protection: Two features protect the device from internal corrosion and prolong its life time: the closed coverage type and the intelligent fluid management system, which leads off accidentally spilled liquids away from the interior of the device.

Surface: The superior full ceramic plate achieves up to 500°C, is resistant against aggressive chemicals and easy to clean.

Housing: The die-cast case with high-quality insulation ensures user safety during operation at high temperatures. The minimized heat transfer from the plate to the inside also ensures a longer life time.

Temperature control & safety: Two independent internal temperature sensors assure accurate temperature control and prevent from malfunction or danger caused by overheating.

Accessories: The external temperature sensor allows accurate temperature due to digital feedback control system.

Motor: The brushless shade motor ensures strong and precise stirring, minimized noise and a long life time. Due to the high-performance magnet, up to 20 l of water can be stirred easily.

Safety first: Hot top indicator lamp illuminates when temperature on the plate is over 50°C.

Controller: New Jog-Dial “Turn + Push” and touch button are designed for intuitive, easy and direct use.

Request a Quote
Contact Support
Witeg – Digital Magnetic Stirrer with Hotplate (MSH-500D)

Key Features

  • up to 500°C
  • digital display with backlight
  • high-quality solid ceramic plate 200×200 mm
  • heat-, chemical- and acid-resistant
  • shade motor for 80-1.500 rpm
  • enormous strength of magnet
  • perfect heat uniformity from the inner to the edge
  • no liquid can get into the body
  • powder-coated aluminium body
  • 30 mm stirrer bar included
  • CE certified and unique serial number for tracing

Specifications

Model MSH-500D
Body powder-coated aluminium
Plate solid ceramic plate, 200×200 mm
Stirring capacity max. 20 l
Speed & control resolution 80 ~ 1,500 rpm, 5 rpm
Temperature range & accuracy max. 500°C, ±0.3°C
Temperature resolution 0.1°C display, 0.5°C control
Temperature uniformity specially designed heating module: temperature difference less than 10%
Heating power / consumption 850W
Timer & alarm 99hr 59min (with continuous run), error status and timer-end
Display digital LCD with backlight function
Controller digital feedback controller with Jog-Dial (Turn+Push) and Touch-button
Safety circuit overheat protection, hot top indicator LED lamp
Stirring bar 30 mm bar included, usable up to 50 mm bar
Permissible temperature & RH % ambient temperature +5 ~ 50°C, 85% RH
Dimension & weight 205x345xh135 mm, 3.3 kg
Packaging size 400x280xh160 mm, unit: 5.4 kg, set: 6.0 kg
Power supply 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz
Order number 230V Unit: DH.WMH05020 | Set: DH.WMH04020
Order number 120V Unit: DH.WMH05021 | Set: DH.WMH04021
