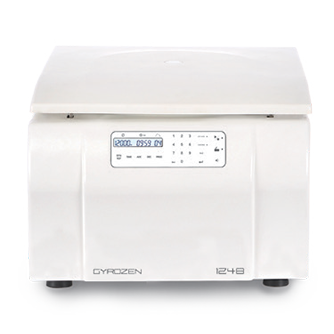

Gyrozen – Table-Top Centrifuge (1248)

Table-top, air- ventilated Multi-Purpose centrifuge can reach a speed of 12,000 rpm. It has a 1L capacity and features a full range of fixed-angle and swing-out rotors to accommodate a variety of applications.

Gyrozen – Table-Top Centrifuge (1248)

Key Features

  • The multi-purpose large capacity centrifuges designed for large-volume daily-working laboratories
  • Max. speed of 12,000 rpm with high capacity and a large assortment of rotor
  • Intuitive control interface with numeric input buttons allows easy setting and editing of running conditions.
  • Selectable time mode of “at set SPEED” for counting running time only when reached the set speed
  • A separate “PULSE” key for quick spin
  • Parameters can be changed during operation.
  • Key lock function helps the set parameters secured during operation.
  • With motorized lid mechanics, only a gentle touch is sufficient to close and open the lid.
  • Lid drop protection design allows easiness and safety when loading or unloading samples.
  • A large assortment of rotors, buckets and adaptors support diverse application doable with one instrument.

Specifications

Max. RPM / Fixed angle 12,000 rpm Max. RPM / Swing-out 5,000 rpm
Max. RCF / Fixed angle 15,520 x g Max. RCF / Swing-out 5,394 x g
Max. capacity / Fixed angle 6 x 85 ml, 30 x 1.5/2.0 ml Max. capacity / Swing-out 4 x 250 ml, 48 x 15 ml, 16 MTPs
Time control Pulse, timed < 100 min or continuous Time counting range Selectable, at set speed or from starting
RCF/RPM conversion Yes Noise level (dependent on rotor) ≤60 dB
ACC/DEC ramps 10-Sep Program memory 9-Apr
Parameters on display window RPM (RCF), Oper Status, Lid Open/Close, Min:Sec, ACC, DEC Display Blue LCD
Automatic rotor Identification Yes Imbalance cut-off Yes
Safety lid lock Yes Lid drop protection Yes
Motorized lid open & close Yes Automatic lid release at completion Yes
Power supply 230 V, 50 Hz (AC 220-230 V, 50/60 Hz; 110 V optional) Power Requirement (VA) 900
Dimension (W x D x H, mm) 473 x 561 x 330 Weight without rotor (kg) 40
CE MARK Yes Cat. No. GZ-1248
