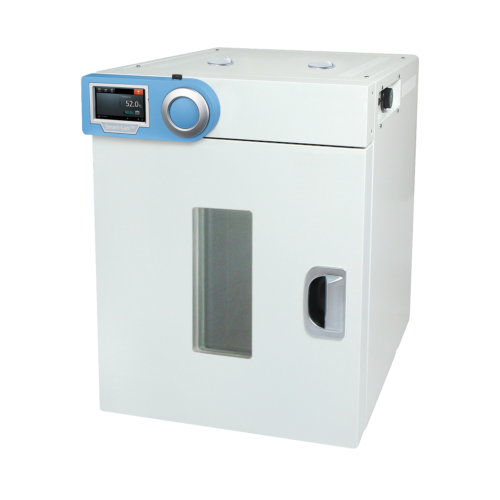

Drying oven SWOF forced-air SmartLab 50/105/155 Liter 250°C

Ideal for:

  • drying, baking, conditioning, curing, pre-heating and aging

Safety mechanism:

  • push alarm service to your smartphone
  • locking mode
  • overheat and over-current protection
  • sensor error detection

Controller:

  • Smart-Lab™ controller with 4? full touch screen TFT LCD:
    • WiRe™ app service, remote control system
    • variable program settings
    • self-diagnostic function
    • automatic data recording
    • data transfer to PC by USB memory
    • Internet connectivity with WiFi
Drying oven SWOF forced-air SmartLab 50/105/155 Liter 250°C

Key Features

  • optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • ambient +5°C to 250°C range, fluctuation of ±0.3°C at 100°C
  • stainless steel chamber
  • powder-coated steel body and glass wool insulation
  • available with viewing window (SWOF-W models)
  • new compact body design
  • storage function for set values of temperature and timer
  • 2x stainless steel wire shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Specifications

Model SWOF-50 SWOF-105 / SWOF-W105* SWOF-155 / SWOF-W155*
Capacity 50 l 105 l 155 l
Temperature range, fluctuation & sensor range: room temperature +5°C – 250°C, fluctuation: ±0.3°C at 100°C, ±0.5°c at 150°C, PT 100
Temperature variation ±1°C at 100°C, 1.8°C at 150°C ±1°C at 100°C. ±2°C at 150°C
Heating power 650 W 1.4 kW 1.6 kW
Heat-up time 25 min to 100°C, 45 min to 150°C 25 min to 100°C, 40 min to 150°C
Recovery time (door open 30 sec) 8 min to 100°C, 8 min to 150°C 6 min to 100°C, 6 min to 150°C
Timer & alarm 99hr 59 min (delay & continuous run)
Control resolution ±0.1°C
Shelves 2 x stainless steel wire shelves included, load per shelf 16 kg
Ventilation 1 x hole Ø 35 mm ventilation hole with stainless steel cap 2 x hole Ø 35 mm ventilation hole with stainless steel cap
Internal dimensions (W x D x H) 370 x 345 x 420 mm 485 x 415 x 535 mm 550 x 480 x 600 mm
External dimensions (W x D x H), net weight 518 x 647 x 724 mm, 44 kg 653 x 712 x 882 mm, 69 kg 718 x 777 x 947 mm, 78 kg
Packing size & gross weight 622 x 754 x 807 mm, 59 kg 743 x 819 x 1068 mm, 79 kg 808 x 884 x 1133 mm, 92 kg
Power supply 1 Phase AC 120V, 60 Hz or AC 230V, 50/60 Hz
Power consumption 674 W 1390 W 1566 W
Energy consumption at 100°C/ at 150°C 117 Wh / 230 Wh 187 Wh / 337 Wh 204 Wh / 398 Wh
Order number 230V DH.SWOF05050 DH.SWOF05105 DH.SWOF05155
Order number 120V DH.SWOF06050 DH.SWOF06105 DH.SWOF06155
Order number built-in viewing window 230 V DH.SWOF07105 DH.SWOF07155
Order number built-in viewing window 120 V DH.SWOF08105 DH.SWOF08155
