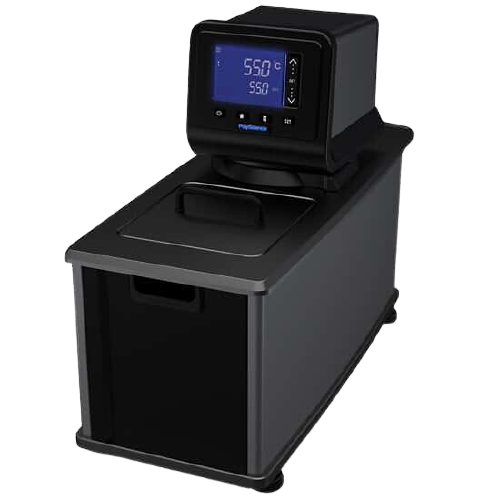

PolyScience -Standard Digital Heated Circulating Bath

High-performance units with the heating features you need

  • All units feature over-temperature and low-level cutoffs to protect you and your samples
  • Space-saving design minimizes bench space utilization while providing excellent performance
  • Provides accuracy to ±0.05°C
  • Ideal for closed-loop circulation applications

These quality baths are ideal for calibration, melting curves, enzyme assays, temperature stability studies, or other applications requiring precise heating.

Request a Quote
Contact Support
PolyScience -Standard Digital Heated Circulating Bath

Key Features

Standard Digital Controller Bath features ±0.05°C temperature stability. The LED readout lets you continuously monitor fluid temperature—simply press a button to display set temperature. Rapidly change set point with rotary encoder or with three user-selectable preset temperature set points. Read temperature in °C or °F.

High-temperature cutoff and low-liquid cutoff ensure safe operation. Vertical design saves valuable lab space. Switch-selectable two-speed pump has 1/4” NPT(F) inlet/outlet ports, which also accept 13-mm ID tubing.

Specifications

Bath Type Heated Circulating Bath Bath Opening Length (in) 5 1/2
Reservoir Capacity (L) 7 Heater Wattage (watts) 1100
Max Temperature (° C) 170 Temperature Setting Digital
Min Temperature (° C) Ambient 5 Temperature Sensor 100 Ω Pt RTD
Pump Type Force Port Connections ¼” NPT(F)
Low-Level Cutoff Yes Interface None
High-Temperature Cutoff Yes Wetted Materials 304 SS
Width (in) 14 1/4 Power (VAC) 115
Height (in) 14 Power (Hz) 60
Depth (in) 8 1/4 Power (amps) 9
Bath Opening Width (in) 5 1/4 Description 7L Standard Digital Heated Circulating Bath, 120VAC
