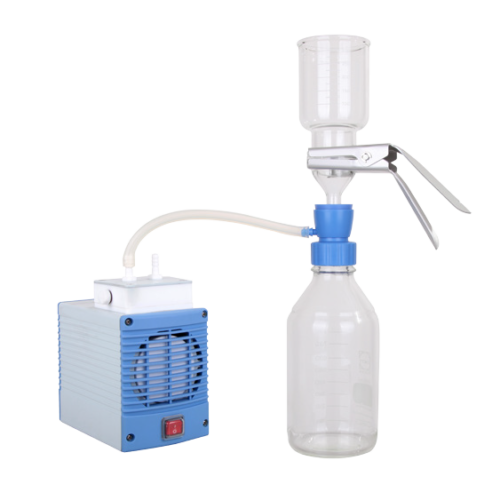

Rocker – Vacuum Filtration System – Chemker 300 – VF-12

Ideal for

  • Solvent purification
  • HPLC mobile phase purification
  • Vacuum filtration

Chemker 300 combined with VF-12 makes a unique filtration system that combines a vacuum source with a filtration device. Its compact design saves a lot of bench space compared to conventional systems.

Vacuum Filtration Set, it includes the following:

  • Chemker 300, PTFE Coated Chemical Resistant Vacuum Pump
  • VF-12, Glass Filtration Apparatus

Material

  • Funnel – Borosilicate glass
  • Support base – Borosilicate glass
  • Membrane support – Sintered glass
  • Clamp – Aluminum
  • Stopper Silicone – rubber (No.8)
  • Filtration adaptor – PP
  • Storage bottle – Borosilicate glass
Rocker – Vacuum Filtration System – Chemker 300 – VF-12

Key Features

  • Compact and safe operation
  • No air pollution
  • Maintenance-free
  • Good chemical resistance
  • One-step filtration
  • Suitable for GL45 storage bottle

Specifications

Model Chemker 300
Power supply 110V/60Hz 220V/50Hz
Max. vacuum 105 mbar
Max. flow rate 20 L/min 18 L/min
Vacuum regulator
Hose barb ID8
Model VF 12
Funnel 300 ml
Storage bottle 1000 ml
Filter diameter 47 mm
VF-12
Funnel capacity 300 ml
Storage bottle capacity 1000 ml
Filter diameter 47 mm
Hose barb ID8 (5/16 inch)
