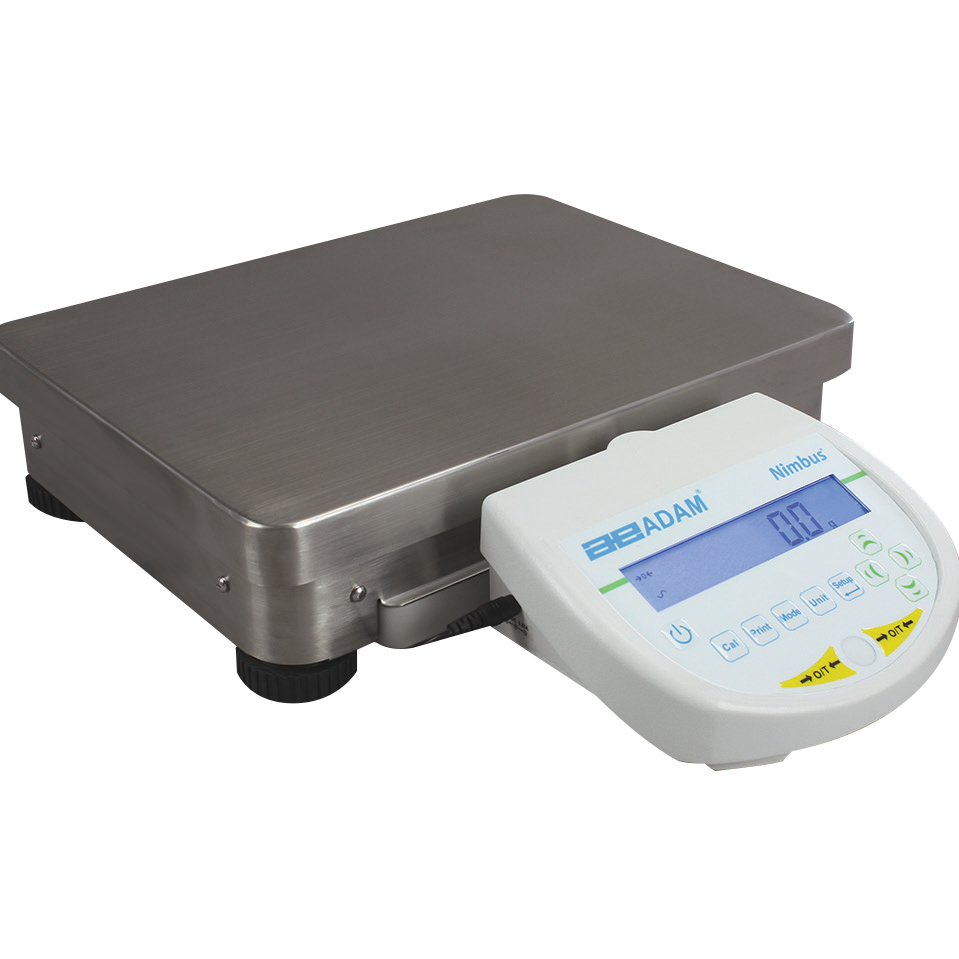

Adam Equipment – High Precision Balance (Nimbus)

Durable and reliable, Nimbus precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space but retains a high level of performance. The single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block and contains fewer parts than a traditional force motor balance. This optimized internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.

 Innovative design combined with powerful performance in a premier balance

Adam Equipment – High Precision Balance (Nimbus)

Key Features

Hardware

  • Colour-coded keys facilitate quick recognition of the most frequently used buttons
  • Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
  • Robust metal housing protects internal components in harsh environments
  • Sealed keypad protects against dirt and spills
  • USB and RS-232 interfaces provide speedy communication with computers and printers
  • Large, grade 304 stainless steel pan allows easy cleaning
  • Vivid, backlit LCD easily visible in any lighting conditions

Software

  • External calibration allows for verification and adjustment with weights
  • Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
  • Selectable digital filtering helps minimise effects of vibration and disturbances
  • Zero-tracking feature ensures display returns to zero reading
  • Multilingual display allows use in many different countries

Display

  • Vivid, backlit LCD easily visible in any lighting conditions

Power

  • AC adapter included

Specifications

Model NBL 12001e NBL 16001e NBL 22001e NBL 32001e NBL 12001P NBL 16001P NBL 22001P NBL 32001P
Capacity 12000g 16000g 22000g 32000g 12000g 16000g 22000g 32000g
Readability 0.1g 0.1g 0.1g 0.1g 0.1g 0.1g 0.1g 0.1g
Repeatability (S.D.) 0.2g 0.2g 0.2g 0.2g 0.2g 0.2g 0.2g 0.2g
Linearity (+/-) 0.4g 0.4g 0.4g 0.4g 0.4g 0.4g 0.4g 0.4g
Pan Size 400 x 300mm
Weighing Units g, mg, ct, GN, N, oz, ozt, dwt, T, custom unit
Stabilisation Time (sec) 3
Interface RS-232, USB
Calibration External calibration
Display Backlit LCD with 20mm -high digits
Power Supply 18VDC 50/60Hz 830mA adapter
Operating Temperature 15° to 35°C
Housing Extruded aluminum base with a die-cast aluminum case

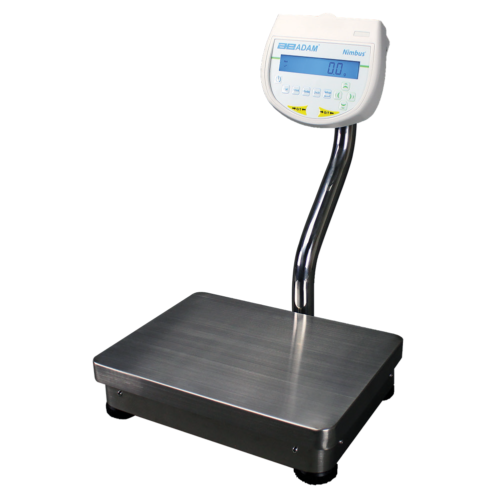

Pillar N/A Yes
Overall Dim. 400 x 480 x 100 mm (Wx D x H) 400 x 480 x 590mm (W x D x H)
Net Weight 7.6kg
